The Growth and Decline of Urban Agglomerations in Germany

Innovative maps that illustrate the most recent socio-demographic urban changes in the major city urban agglomerations in Germany have very recently been produced in a joint project of the School of Geography and the Environment at the University of Oxford and the Research Institute for Regional and Urban Development Dortmund (Germany).
The Research Institute for Regional and Urban Development (Institut für Landes und Stadtentwicklungsforschung, ILS) investigates new social processes, especially those involving urbanisation in Germany and Europe. This includes economic, social and structural processes that are compared and monitored over time to gain a better understanding of the underlying developments. Testing state-of-the-art visualisation techniques are a significant part of this effort. This was the focus of a collaboration between researchers of the University of Oxford and the ILS Dortmund which resulted in the development of a series of highly effective maps called “cartograms” that provide new insights in the changing geographies of city regions in Germany.

Mapping the Growth and Decline of Urban Agglomerations in Germany
(click for larger version)

The method used in the research creates gridded cartograms in which equally-sized grid cells are resized according to number of people in any area. The resulting map looks as if the reader has placed a magnifying glass on the most densely populated regions while sparsely populated areas are much smaller than they appear on a land area map. This allows additional spatial information such as socio-demographic data to be shown in their relation to population. Using such visualisations dynamic changes, such as shifting populations, can be analysed in their spatial as well as their human context.

Map and gridded population cartogram of Urban Agglomerations in Germany
(click for larger version)

Approximately half the population of Germany lives in the 30 major urban German agglomerations, such as Berlin, Hamburg, Munich (München), and Cologne (Köln) but also in smaller cities including Münster, Freiburg, Leipzig, and Dresden. The gridded cartogram helps to understand the demographic processes and development that occurred there in recent years, revealing some distinct trends of re-urbanisation in some of the most densely populated areas.
Examination of the average annual change in the populations of the selected urban agglomerations highlights the regional differences in these trends. Contrary to the national population decline, which is predicted to continue, 26 out of the 30 major agglomerations show population growth between 2008 and 2013. In 25 of these areas population growth in the city centre is even higher than in its suburban area. This can be seen as evidence of a very recent trend of re-urbanisation in these places.
One particularly notable trend is the dynamics in smaller cities such as Freiburg and Münster, as well as Dresden and Leipzig in east Germany. In addition to high rates of re-urbanisation, the suburban areas often have stagnating or even declining populations.
The Ruhr area agglomerations are distinctively different from the other areas described in the overall summary of trends. The stagnating populations in the centres of Dortmund and Essen are complemented by considerably declining populations in their surrounding areas.
Two cartograms depicting growth and decline have been produced as separate maps. These reveal, population decline in the settlements in the Ruhr area that is larger than in all other urban agglomerations put together. Growth, in contrast, is spatially spread much more evenly.
Amongst the influencing factors or growth and decline are developments in social structures, employment as well as changes in land development in these regions. How these factors are interconnected and influence each other is part of further research within this project that aims at establishing a long-term geomonitoring of these regions in order to better understand these new forms of urbanisation in Germany that are currently only just beginning to emerge.

Average annual change of employees
between 2008 and 2013

Gridded population cartogram showing the average annual change of employees between 2008 and 2013
(click for larger version)

Average annual change of benefit recipients
between 2008 and 2013

Gridded population cartogram showing the average annual change of benefit recipients between 2008 and 2013
(click for larger version)

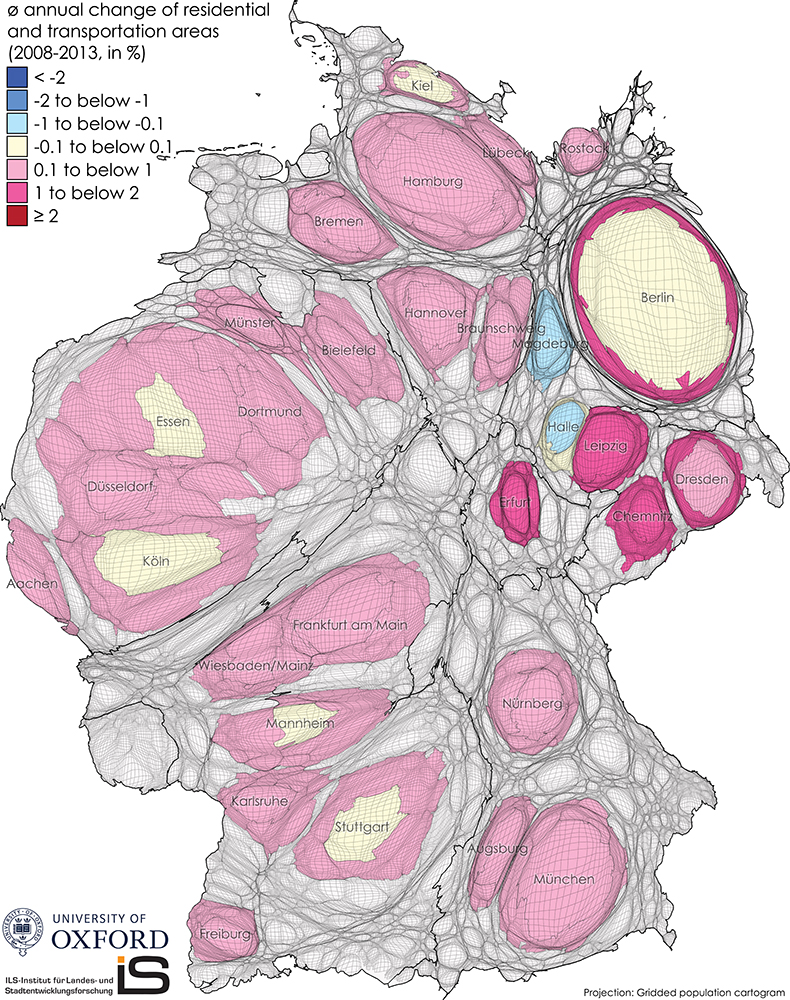

Average annual change of residential and transportation areas
between 2008 and 2013

Gridded population cartogram showing the average annual change of residential and transportation areas between 2008 and 2013
(click for larger version)

Average annual change of commercial areas and open spaces
between 2008 and 2013

Gridded population cartogram showing the average annual change of commercial areas and open spaces between 2008 and 2013
(click for larger version)

The content on this page has been created by Benjamin Hennig and Stefan Kaup with the support of Tanja Ernst of ILS – Research Institute for Regional and Urban Development (Dortmund, Germany) using data from the forthcoming edition of the annual geomonitoring report of urban agglomerations in Germany. Please contact me for further details on the terms of use.
